Dry Floating Fish Feed Pellet Processing Line 200kg/H-6000kg/H Animal Pet Cat Dog Food Making Extruder Machine
Productdetails:
| Plaats van herkomst: | China |
| Merknaam: | MIKIM |
| Certificering: | CE |
| Modelnummer: | DGP100,DGP120,DGP135,DGP160,DGP200 |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 set |
|---|---|
| Prijs: | $10500.00 - 55000.00/ Set |
| Verpakking Details: | ingepakt door houten de uitvoerpakket of lading door container |
| Levertijd: | 7-10 werkdagen |
| Betalingscondities: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Levering vermogen: | 300 sets per maand |
|
Gedetailleerde informatie |
|||
| Markeren: | dry floating fish feed pellet machine,pet food extruder machine 200kg/H,dog food making machine with warranty |
||
|---|---|---|---|
Productomschrijving
Dry Floating Fish Feed Pellet Processing Line 200kg/H-6000kg/H Animal Pet Cat Dog Food Making Extruder Machine

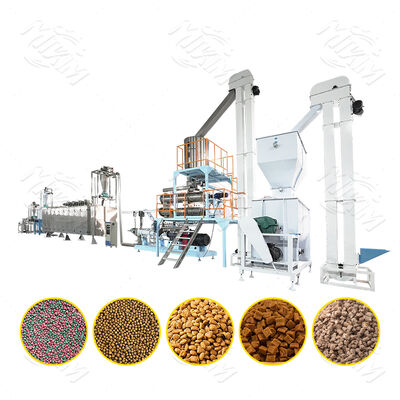

Dog Food Processing Line Overview
Our dog food extruder can produce all kinds of pet food, including dog, cat, fox, bird and more. Using twin screw extruder technology, the entire workflow can be precisely controlled by parameters. Different raw materials and nutrient elements can be combined according to advanced formulas, resulting in tasty and easily digestible final products.
- Water content is below 12%
- Digestibility can reach 70%
- Nutrition is comprehensive and balanced
- Easy to carry with long shelf life
Raw Materials
Suitable raw materials for dog food making machine include:
Corn flour, wheat flour, rice flour, fish powder, bone powder, fresh bone and meat paste, etc. You can also use corn feeds, rice feeds, or wheat feeds directly after grinding, with additional nutrients added as needed.
Technical Specifications
| Parameter | DGP-100 | DGP-120 | DGP-135 | DGP-160 | DGP-200 |
|---|---|---|---|---|---|
| Capacity(kg/h) | 500 | 600-700 | 800-900 | 1000-1200 | 1800-2000 |
| Main motor(kw) | 37 | 55 | 75 | 90 | 132 |
| Feeder motor(kw) | 1.5 | 1.5 | 1.5 | 2.2 | 3 |
| Cutter motor(kw) | 1.5 | 1.5 | 2.2 | 2.2 | 3 |
| Screw diameter(mm) | φ100 | φ120 | φ135 | φ160 | φ200 |
| Machine size(m) | 2 * 2.8 * 1.2 | 2.2 * 2.9 * 1.2 | 2.2 * 3.1 * 1.37 | 2.3 * 3.15 * 1.38 | 2.35 * 3.45 * 1.65 |
| Weight(kg) | 1500 | 1800 | 2000 | 2500 | 3200 |
Product Features
| Main Accessories | Function |
|---|---|
| Anti-blocking feeder | Ensures even feeding and stable discharge of materials |
| Double shaft preconditioner | Extends material stay time for even pre-conditioning, improves precure degree and increases capacity |
| Gearbox | Processed by advanced international technology for long-term reliable operation |
| Lubrication and cooling system | Uses refined filtration forced cooling for optimal bearing conditions |
| The feeding system | Double spiral forced feeding for uniform and wide feeding |
| The screw | Segmented combined screw suitable for various raw materials with self-cleaning function |
| The rotary cutting device | Suspended mold assembly with linear bearing tool adjustment for safe, accurate and quick tool adjustment |
Our Services
- Customized equipment selection based on client requirements
- Professional consultation on market, machinery, technology, raw materials, and packaging
- Factory layout drawing services
- Assistance with hotel reservations at agreement prices
- Regular updates on order production progress and loading
- Shipping logistics consulting (sea, air, land, express)
Customer Visits
Qualifications and Awards
Product Video
Wilt u meer details over dit product weten
